coNEXTion Systems, Inc. was a direct creation of Mr. Wright, whose objective was to break new installability ground and dramatically improve the acoustical performance of custom installed loudspeaker systems – especially of the in-ceiling variety. coNEXTion Systems products have proved revolutionary on several installability/performance fronts, creating the industry’s first tool-less installation system that dramatically reduces installation times and reduced the risks associated with working on the top of ladder. And great strides where made on the sound quality area as well – leading one reviewer to claim that they were the first ceiling mounted systems he had ever heard that were able to produce an actual three dimensional acoustical image – another industry first. These products generated six issued or currently pending patents – five of them for utility and one for design. (#7,334,767, #7,121,756 B2, #D512,047 S, #US 2005/0045171 A1, #US 2005/0047604 A1, #11/336,257) coNEXTion’s version of an outdoor loudspeaker, the sonoma series, also broke new ground and was called “audio’s apple” by one reviewer for it aesthetic design and was praised for it installation simplicity. And even though the sonoma’s retailed for just $600.00 per pair this same reviewer stated that their audio quality was better than many $3000.00 per pair loudspeaker systems that he had reviewed.

The Details

zc series of in-ceiling loudspeakers

Patent #7,334,767 (z-Tools®):
- Tool-less frame fastening system.

Patent #7,121,756 B2 & 7,483544 (Extending Tweeter / 50° Angling System):
- For extending tweeter center post system.
- For 50° angling tweeter system.

Patent #7587059  (SnapLok®):
- For baffle-to-frame attachment system.

Patent #7570778  (Angled Speaker Assembly):
- For angling woofer system.

2005 CES Innovations Design & Engineering Showcase Award – z600c

2005 Custom Retailer EXCITE! Award Winner – z600c

2005 EHX Multi-Room Audio/Video Award Finalist – z600c

2005 Tech-Home Mark of Excellence Award Finalist – z600c

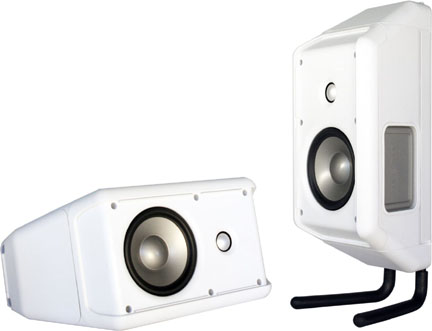

sonoma series indoor/outdoor loudspeakers

Patent #D512,047 S. (Design Patent)

2004 CEDIA Resi-Award Finalist – sonoma 10

2006 CES Innovations Design & Engineering Showcase Award – sonoma 10

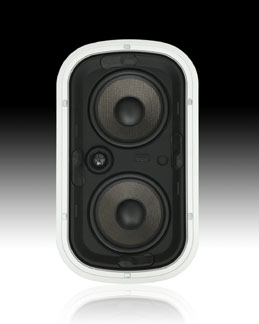

zi series of in-wall loudspeakers

Patent-Pending #11/336,257:
- For mid/high frequency pitch and roll mechanism.
- For flexible baffle system.
- For 20° angling tweeter system.
- For rotate-to-lock baffle-to-frame attachment system.

Further Patent Descriptions

  1. z-Tools® (Patent #7,334,767)
    1. This mechanism enables the installation of a Primary Frame (the primary mechanical interface between the wall structure (Drywall/Wallboard) and the speaker system) into a previously cut hole in the wallboard without the use of any tools other than the installer’s hands. This is the only system of its kind and has been enthusiastically received by installers as a major step forward toward reducing the risk and expense of installing these types of products.
  2. SnapLok® (Patent # 7587059)
    1. This mechanism enables the installation of the Baffle Assembly, also without the use of any tools. It requires no pre-alignment, allows for up to 359° of rotation after installation into the Primary Frame Assembly and is fully “lockable” to prevent any after-installation “buzzing or rattling”. No other system of its kind is currently available.
  3. Angled Speaker Assembly (Patent #7570778)
    1. This mechanism enables the angling of a woofer from 0°to 20°. It is also “lockable” and does not depend on friction to maintain its position. It comes pre-positioned from the factory in the 20° position, and can be infinitely adjusted between 0°and 20°. There are other “ball and socket” systems available but all rely on friction fits to maintain their position. There are no other adjustable, locking systems currently available.
  4. Extending Tweeter / 50° Angling System (Patent #7,121,756 B2 & 7483544)
    1. This patent contains two functions:

                                    i.      A mechanism that enables a tweeter or a tweeter/midrange-combination and its rotator to be extended up to a little over 1” further away from its accompanying woofer. This feature allows the tweeter or tweeter/midrange-combination to be extended slightly below the ceiling’s surface. Providing the device with an unobstructed “targeting” of the typically off-axis listening area, dramatically increases the systems ability to “image”.

                                    ii.      A locking ball/socket mechanism (rotator) that enables a tweeter or tweeter/midrange-combination to be rotated up to ±50° without creating any refractive surfaces. In combination with the angling woofer mechanism and the extending post, these features enable up to 70° of total rotation. This allows the tweeter or tweeter/midrange-combination to be directed toward the desired listening area unhindered, on-axis, and with relatively low diffraction. No other system of its kind is currently available.

  1. sonoma® Design Patent (Patent Issued 1/06 # US D512,047 S)
    1. The sonoma® outdoor speaker systems do not require any pre-installation disassembly or assembly. All mounting/angling mechanisms are hidden from view after installation, making for a truly “aesthetically-benign” cosmetic that is compatible with far more architectural environments than most of its competitors.
    2. It is fabricated from thick-walled structural Nylon 6/6 (up to ˝” thick) resulting in an extremely dense and inert cabinet (it is much closer to an MDF than is the typical plastic cabinet).
    3. The sonomas® feature twin, molded-in passive radiators that impressively improve the system’s bass response. Overall the sonomas® are acoustically impressive to the point that Brent Butterworth wrote in the January ’06 issue of Home Entertainment: “In fact, I have heard some $3,000-per-pair speakers that do not sound as good as the Sonoma Ten”.
  2. Pitch/Roll mechanism (Combined into and filed 1/20/06 to Serial #11/336,257 Should publish soon.)

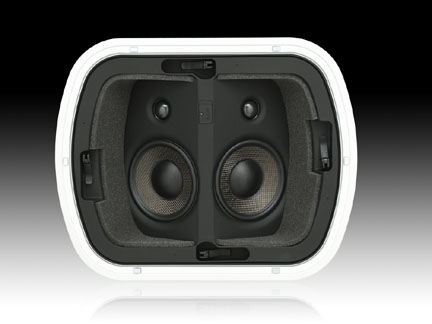

    1. This mechanism was developed for the zi in-wall systems. It enables the mid/high transducers, along with their back-boxes, to be “pitched” (tilted up/down) and “rolled” (toed in/out) in unison, facilitating ideal on-axis positioning toward the prime listen area.
  3. FlexBaffle™ (Combined into and filed 1/20/06 to Serial #11/336,257 Should publish soon.)
    1. An integral component of the Pitch/Roll mechanism, the FlexBaffle™ enables the movement of the zi’s midranges/tweeter without creating significant diffractions. Both the Pitch/Roll mechanism and the FlexBaffle™ are fully unique in the Custom Install cosmos.
  4. 20° Angling Tweeter Mechanism (Combined into and filed 1/20/06 to Serial #11/336,257 Should publish soon.)
    1. Designed primarily for use in in-wall systems, this mechanism enables up to ±20° rotation of the tweeter without creating any additional diffractions. (And, does not step on any existing IP.)
  5. Rotate to Lock (r2l™) - no-tool Primary Frame to Baffle mechanism (Combined into and filed 1/20/06 to Serial #11/336,257 Should publish soon.)
    1. A simple mechanism that enables the inclusion of a separate Primary Frame and Baffle Assembly for inexpensive “Distributed Sound” ceiling speaker applications. The Primary Frame is installed employing standard screw actuated “Dogs”. The Baffle Assembly is then installed (or uninstalled) into the Primary Frame (at the convenience of the construction schedule) with a simple “twist” that requires no tools and is completely a non-event to align. There are no other “two-part” ceiling systems offered anywhere near this price range.
